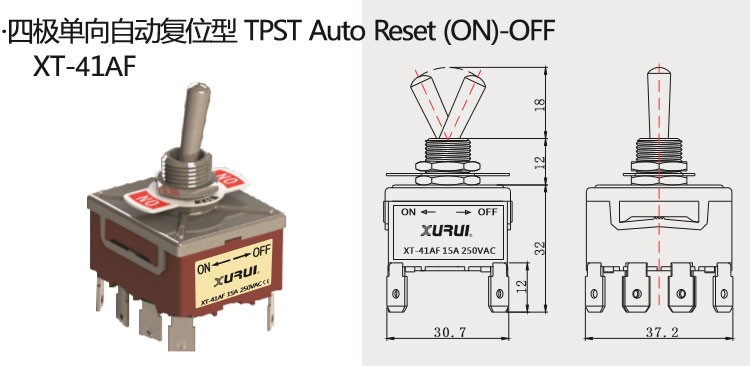

Dimensions
●Adopt thermoplastic crust,compact construction,and Simple installation;
●May install the protecting cap,can against oil and dustproof;
●Hand reset and automatic reset for flexible choice;
●Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.
Model & Meanings
Mounting Holes & Product Structure
| 项目 Item | 参数值 Data | |
| 额定负载 Rating load | MTS: 6A/125,250V | |
| XT: 15A/250VAC, 25A/250VAC | ||
| 操作频率 Operation frequency | 30次/分 30times/min | |
| 绝缘电阻 Insulation resistance | 100MΩ以上(Above) DC500V | |
| 接触电阻 Contact resistance | 25mΩ(初值 initial value) | |
| 介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| 振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| 冲击 Impact | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| 寿命 Life | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 500,000次以上above | |
| 防护等级 Protection degree | IP40 | |
| 使用温度 Operating temperature | -25~+80℃ | |
Terminal Forms
