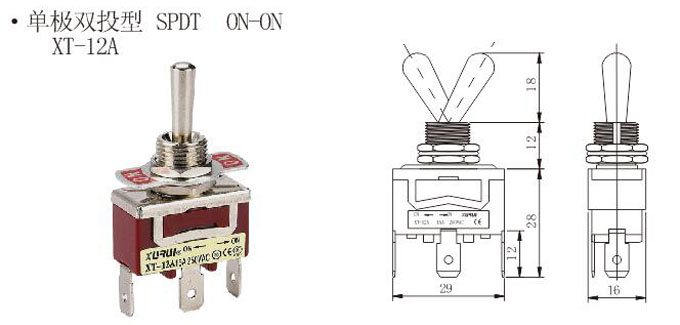

Dimensions
●Adopt thermoplastic crust,compact construction,and Simple installation;
●May install the protecting cap,can against oil and dustproof;
●Hand reset and automatic reset for flexible choice;
●Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro motion tool etc.
Model & Meanings
Mounting Holes & Product Structure
| Item | Data | |
| Rating load | MTS: 6A/125,250V | |
| XT: 15A/250VAC, 25A/250VAC | ||
| Operation frequency | 30times/min | |
| Insulation resistance | 100MΩ(Above) DC500V | |
| Contact resistance | 25mΩ(initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | 100,000次以上 above |
| Mechanical | 500,000次以上above | |
| Protection degree | IP40 | |
| Operating temperature | -25~+80℃ | |
Terminal Forms
