PDF·The cover is made of thermoplastic and brass alloy.
·The sensor built in over-load protection,short-circuit protection, reverse-connection protection and surge absorbing circuits.
·Multiple connect options ,flexible and convenient installation .
·Protection degree can reach to IP67,water-proof,oil-proof and dust-proof.
·LED indicates work condition.
·Widely used in water lever and liquid lever detection , industrical automatic production line dection,safety detection,position detection and alarm appliance diction, etc.

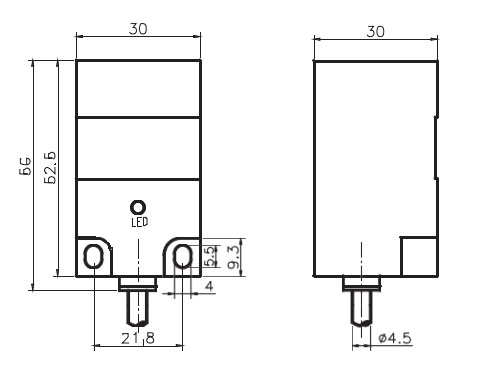

Model & Meanings
Connection Diagram
Specification
| 产品型号 Model | LN30F-Z10NK | LN30F-Z10NK/L | LN30F-Z10NK/ML |
| LN30F-Z10NB | LN30F-Z10NB/L | LN30F-Z10NB/ML | |
| LN30F-Z10PK | LN30F-Z10PK/L | LN30F-Z10PK/ML | |
| LN30F-Z10PB | LN30F-Z10PB/L | LN30F-Z10PB/ML | |
| LN30F-Z10DK | LN30F-Z10DK/L | LN30F-Z10DK/ML | |
| LN30F-Z10DB | LN30F-Z10DB/L | LN30F-Z10DB/ML | |
| LN30F-Z10AK | LN30F-Z10AK/L | LN30F-Z10AK/ML | |
| LN30F-Z10AB | LN30F-Z10AB/L | LN30F-Z10AB/ML | |
| 最大检测距离 Max. Sensing Distance | 10mm±10% | ||
| 稳定检测范围 Stable Sensing Area | 0-9mm | ||
| 工作频率 Operating Frequency | 0.3KHz(AC 20Hz) | ||
| 工作电压 Supply Voltage | 10-30VDC/80-265VAC(纹波Ripple＜10%) | ||
| 漏电流 Leakage Current | ＜1.2mA | ＜0.6mA | ＜1.2mA |
| 应差距离 Movement Differential | ＜10mm×10% | ||
| 消耗电流 Consumption Current | 15mA | ||
| 负载电流 Load Current | 200mA | ||
| 残留电压 Voltage Drop | ＜3V | ||
| 工作温度 Operating Temperature | -25~80℃ | ||
| 连接方式 Connection Type | 引线Cable 2m | 接插式Plug | 半引线接插式Cable & plug |
| 外壳材料 Housing Material | PBT | ||
Series & parallel connection
When the proximity switch is connected in parallel (NPN,PNP type can not be mixed use),Proximity switch any action can drive load.The quantity of the proxim switch depends on the sum of leakage current.As long as the action does not affect the load, proximity switch can be more connections.
When the proximity switch is connected in series (NPN, PNP can be mixed use ), Only when all of the action at the same time, the proximity switch ca drived the load.The quantity of proximity switches depens on the sum of saturation voltage.As long as the action does not affect the power and voltage, proximi switch can be more Connections. Proximity switch response frequency is the initial reset accumulation of each proximity switch.
matters need attentions
Cautions when connected or disconnected with the power supply
When connecting the proximity switch with the counter and the programmable controller ,there isn't any problem because of built-in initialized reset circui please avoid the conditions mentioned below
The detection object lies around the detection distance of the proximity switch;For DC voltage type and DC switch switch type,when power supply is turned on (turned off),time constant rises(drops)greatly;there is self-excitation and noise when the AC switch type proximity switch is power-on(off)
Capacitor,light load
The proximity switch can't have the capacitor or light that has larger jumping current as the load directly connected to be connected through a relay or series connected with a current-limiting resistance.The peak cuttent set by current-limiting resistance ris within the load current of proximity switch;Make sure to connect through load.
