●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

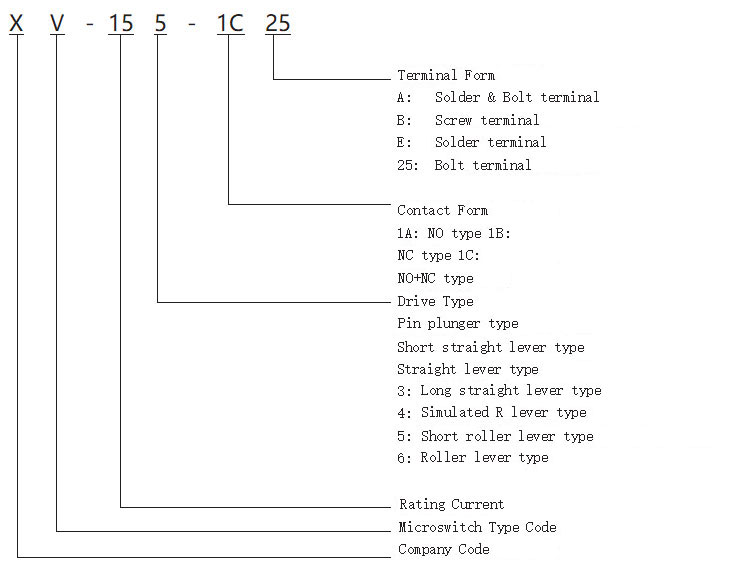

Model & Meanings

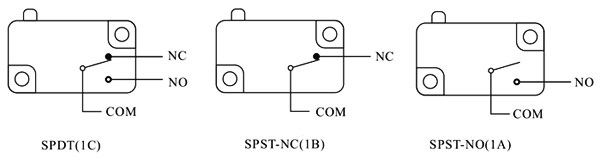

Contact Forms
Specification
| Item | Data | |
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical | 600times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100MΩ (Above) DC500V | |
| Contact resistance | 25mΩ(initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | Above1,00,000 times |
| Mechanical | Above 1,000,000 times | |
| Protection degree | IP40 | |
| Operating temperature | -25~+80℃ | |
| Operating humidity | <85% | |
Rating
| Ue(V) | Ie(A) | Ith(A) |
| AC-250 | 7.5 | 10 |
| AC-125 | 15 | 20 |
| DC-250 | 0.3 | 0.45 |
| DC-125 | 0.6 | 0.75 |
| AC-250 | 16 | 20 |

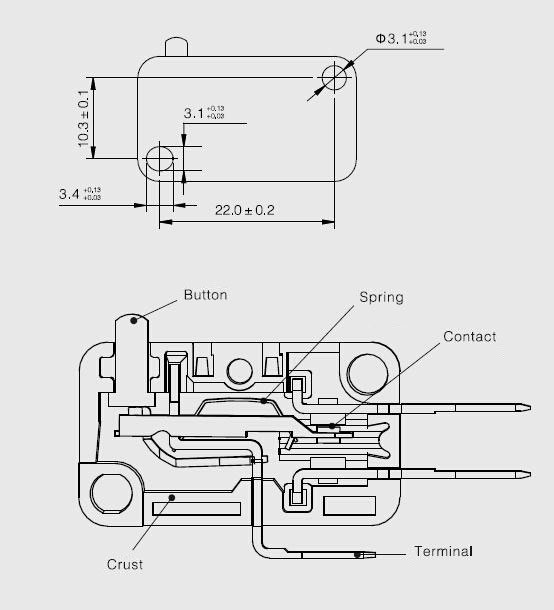

Mounting Hole Dimensions & Strucutre
Terminal Forms

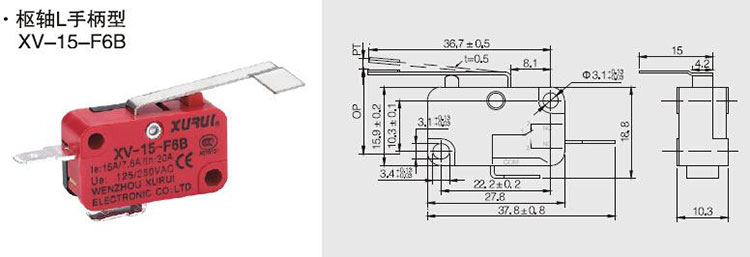

Dimensions/Operating Characteristics
| OF max. | 125g(1.23N) |
| RF min. | 14g(0.14N) |
| PT max. | 2.8mm |
| OT min. | 1.0mm |
| MD max. | 0.8mm |
| OP | 15.2±0.6mm |
