●Adopt thermosetting plastic or thermoplastic;
●Small contact gap,snap action,high sensitivity and small operating travel;
●Variety of levers;
●Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
Model & Meanings
Contact Forms
Specification
| Item 项目 | 参数值 Data | |
| Operating speed 操作速度 | 0.1mm-1m/s | |
| Operating frequency操作频率 | 机 械 Mechanical | 600次/分 600times/min |
| 电 气 Electrical | 30次/分 30times/min | |
| Insulation resistance绝缘电阻 | 100MΩ以上(Above) DC500V | |
| Contact resistance接触电阻 | 25mΩ(初值 initial value) | |
| Withstand voltage介质耐压 | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| Vibration振动 | 误动作 Misoperation | 10-55Hz 复振幅Amplitude 1.5mm |
| Impact冲击 | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| Life寿命 | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| Protection degree防护等级 | IP40 | |
| Operating temperature使用温度 | -25~+80℃ | |
| Operating humidity使用湿度 | <85% | |
Rating
| 额定电压Ue(V) | 额定电流Ie(A) | 发热电流Ith(A) |
| AC-250 | 7.5 | 10 |
| AC-125 | 15 | 20 |
| DC-250 | 0.3 | 0.45 |
| DC-125 | 0.6 | 0.75 |
| AC-250 | 16 | 20 |
Mounting Hole Dimensions & Strucutre
Terminal Forms

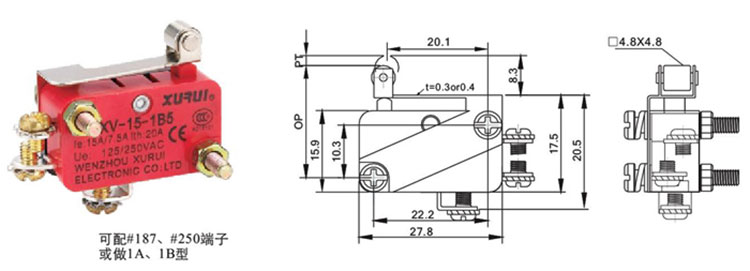

Dimensions/Operating Characteristics
| OF max.动作力 | 200g(1.96N) |
| RF min.回复力 | 80g(0.78N) |
| PT max.预行程 | 1.4mm |
| OT min.超行程 | 0.8mm |
| MD max.差行程 | 0.5mm |
| OP 动作位置 | 20.5±0.6mm |
