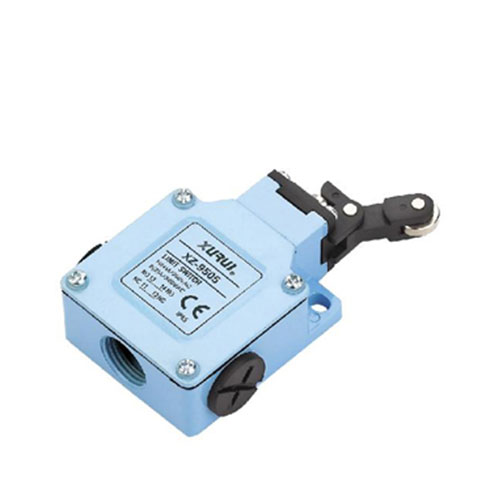

·Strong Zinc cast outer shell, strong structure and high mechanical strength;
·Preventing oil and water ;
·Double way switch, double spring inner switch;

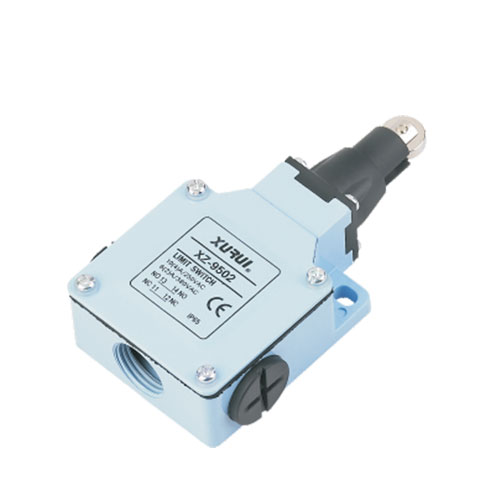

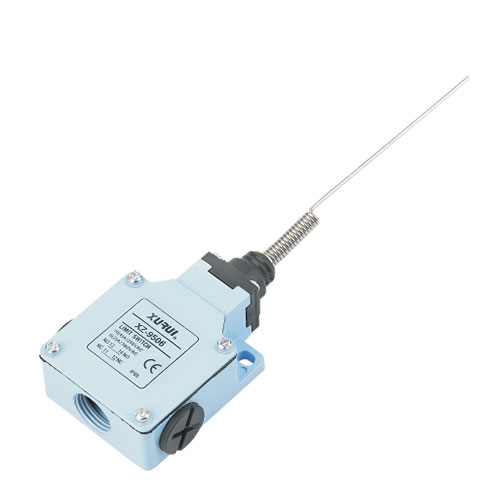

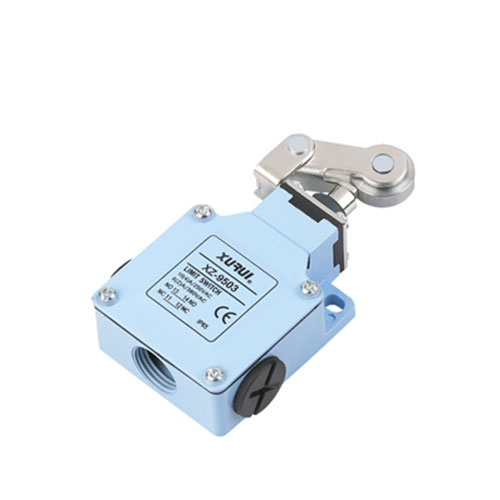

·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

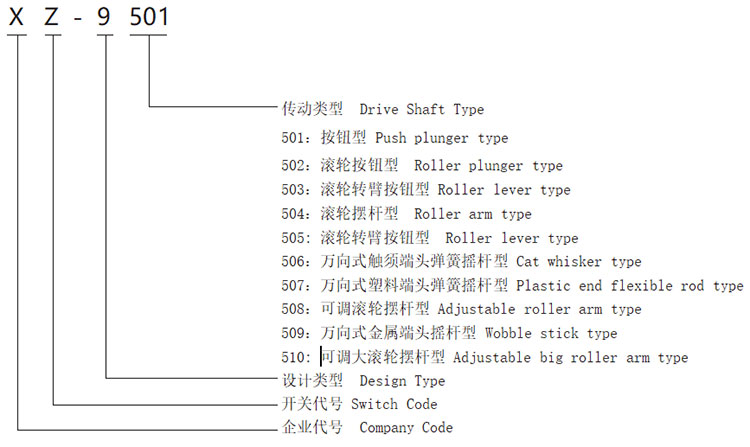

Model & Meanings

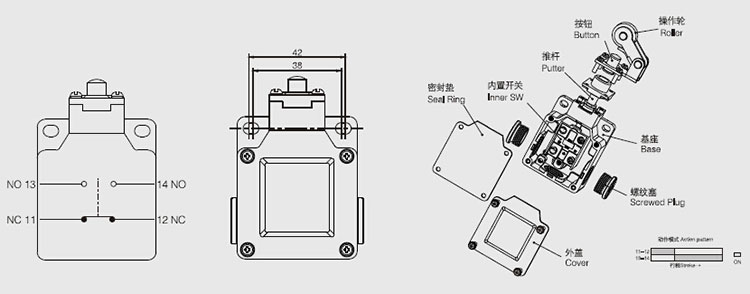

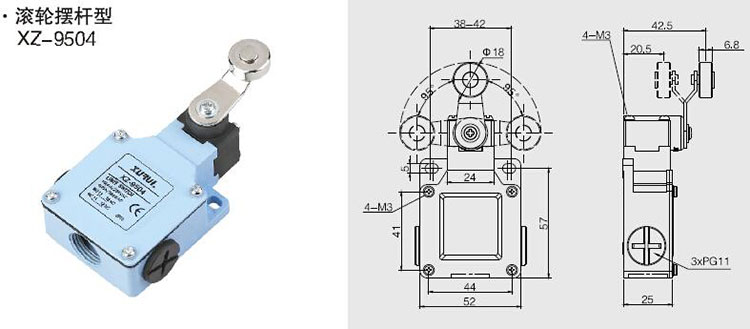

Contact Form & Mounting Holes Dimensions
Specification
| 项目 Item | 参数值 Data | |
| 额定负荷 Rating load | AC-15 | |
| 操作速度 Operation speed | 10(4)A/250VAC,6(2)A 380VAC | |
| 操作频率 Operation frequency | 机 械 Mechanical | 5mm-0.5m/s |
| 电 气 Electrical | 30次/分 30times/min | |
| 绝缘电阻 Insulation resistance | 100mΩ以上(Above) DC500V | |
| 绝缘电阻 Contact resistance | 25mΩ初值 initial value) | |
| 介质耐压 Withstand voltage | 非连线 Non-connection wire | 1000VAC |
| 各端子间 Every terminal | 1500VAC | |
| 振动 Vibration | 误动作 Misoperation | 10-55Hz Amplitude（复振幅）1.5mm |
| 冲击 Impact | 耐 久 Durable | 1000m/s2 |
| 误动作 Misoperation | 300m/s2 | |
| 寿命 Life | 电 气 Electrical | 100,000次以上 above |
| 机 械 Mechanical | 1,000,000次以上 above | |
| 防护等级 Protection degree | IP65 | |
| 使用温度 Operating temperature | -10~+70℃ | |
| 使用湿度 Operating humidity | <85% | |
Dimensions/Operating Characteristics
| OF max.动作力 | 500g(4.9N) |
| RF min.回复力 | 80g(0.78N) |
| PT max.预行程 | 30° |
| OT min.超行程 | 70° |
| MD max.差行程 | 15° |
| TT 总行程 | 90° |
