Limit Switch XZ-8108
● Strong structure,made of zinc metal alloy and plastics,easy to contact line;
● Small size,water and oil resistant;
● Double way switch,double spring inner switch;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
Model & Meanings
Mounting Holes & Contact Form
Product Structure
Specification
| Item | Data | |
| Rating load | 5A/250VAC | |
| Operation speed | 5mm-50cm/s | |
| Operation frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100mΩ以上(Above) DC500V | |
| Contact resistance | 25mΩ(initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection degree | IP65 | |
| Operating temperature | -20~+60℃ | |
| Operating humidity | <85% | |

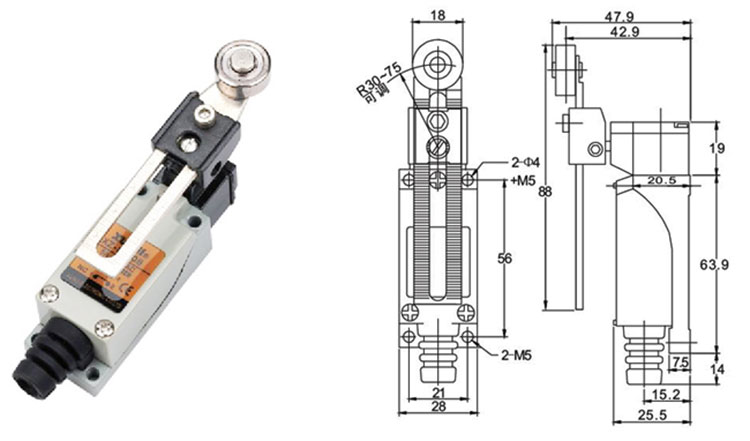

Dimensions/Operating Characteristics
| OF max. | 800g(7.84N) |
| RF min. | 60g(0.59N) |
| PT max. | 30° |
| OT min. | 60° |
| MD max. | 15° |
| TT | 90° |
