Dry / wet alarm valve

Dry / wet alarm valve

Information
  • Dry / wet alarm valve
  • Dry / wet alarm valve
Quick Details

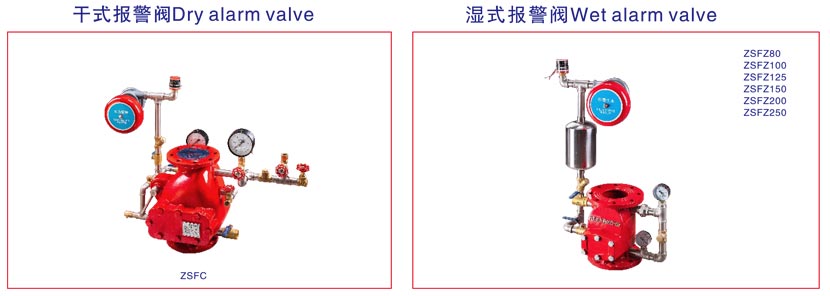

ZSFC dry alarm valve

Overview

The ZSFC dry alarm valve is the water supply control valve of the thousand type sprinkler system. The valve is normally closed with pressurized  gas in the pipeline system (also used to monitor the sealability of the pipe network). When the nozzle is opened, the gas in the pipe network drops  rapidly, the valve opens, the water enters the pipe network system and is ejected from the open sprinkler head to perform the fire extinguishing function.

Technical parameters

Model Nominal diameter(mm) Rated working Pressure(MPa) Flange outer diameter(mm) Flange hole center diameter(mm) Screw hole quantity(mm)
ZSFC100 100 1.2 φ220 φ180 8×φ18
ZSFC150 150 1.2 φ285 φ240 8×φ22
ZSFC200 200 1.2 φ340 φ295 12×φ22

dry alarm valve, wet alarm valve

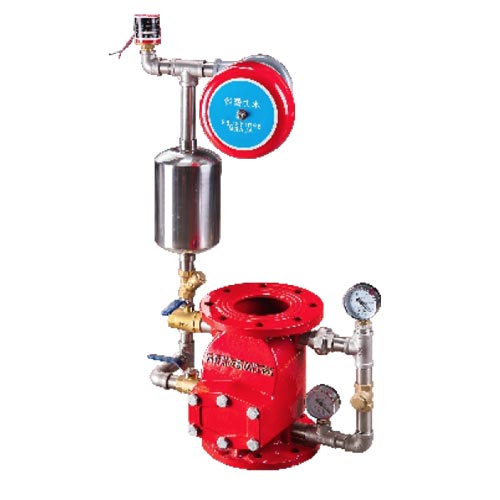

ZSFZ wet alarm valve

Overview

The ZSFY system is a universal automatic sprinkler system, which consists of wet alarm valve, retarder, hydraulic alarm and other components  (pressure switch, flow indicator, sprinkler). The system is in the working condition for a long time, and the pipe network is filled with pressure water.  When there is a fire somewhere in the protected area, the ambient temperature rises and the heat sensitive element (glass ball) on the nozzle moves,  the sealant component is dropped, the system is started automatically, the water is sprayed directly into the area where the fire occurs, and the alarm  signal has reached the purpose of alarm, fire extinguishing and fire control. The wet alarm valve is widely used in high-rise buildings, hospitals, hotels, offices, shopping malls and warehouses, factories and underground  works because of its stable working performance, high fire extinguishing efficiency, sensitive operation, simple maintenance, long reliable service life,  etc.

Technical parameters

Model Nominal diameter(mm) Rated working Pressure(MPa) Flange outer diameter(mm) Flange hole center diameter(mm) Screw hole quantity(mm)
ZSFY100 100 1.6 φ220 φ180 8×φ18
ZSFY150 150 1.6 φ285 φ240 8×φ22
ZSFY200 200 1.6 φ340 φ295 12×φ22
ZSFY250 250 1.6 φ405 φ355 12×φ26
