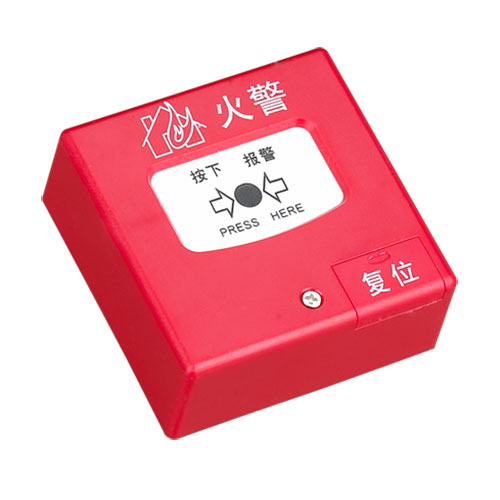

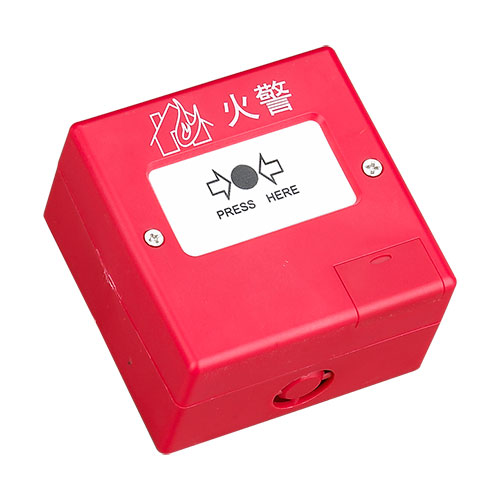

Product Introduction and Application:
PA-SUP Series Manual Fire Alarm Button has the advantage of simple structure,novel design and easy installation.It is used in factories,Warehouse,Hotels, office buldings and medium-sized buildings'fire alarm devices.
In case of fire,Just break the glass(TypeⅠ、Type Ⅱ),or when press the start part(TypeⅡ、TypelV),the button will immediately output alarm models,start the alarm and other linkage devices.After type I and type Ⅲ actlon,reuse will need to replace the starting part (glass);After typeⅡ action,no need to replace the start-up part,only with a dedicated key to reset.
When make a regular inspection,just insert the button key Into the test hole(typeⅠ),or press the start part(type Ⅱ,type IV),Or remove the button screw(type Ⅲ)to achieve the purpose of inspection.
Main Parameters:
Model | PA-SJP-01、PA-SJP-02、PA-SJP-03、PA—XB-01 |
Working Voltage | DC24V/AC220V |
Contact resistant | <0.1Ω |
Max working current | 5A |
Indicator light working current | <5mA(DC24V) |
working temperature | -10℃~50℃ |
Working Relative humidity | ≤95RH(25°) |
