There are many types of micro switches, and there are hundreds of internal structures. According to the volume, there are ordinary, small, and ultra-small; according to the protection performance, there are waterproof, dust-proof, and explosion-proof types; according to the breaking form, there are Single type, double type, multi-link type.
There is also a strong disconnect micro switch (when the reed of the switch does not work, the external force can also make the switch disconnect); according to the breaking capacity, there are ordinary type, DC type, micro-current type, and high-current type.
According to the use environment, there are ordinary type, high temperature resistant type (250℃), super high temperature resistant ceramic type (400℃)

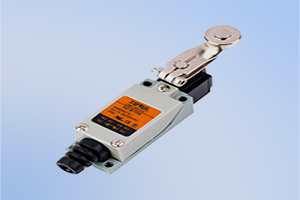

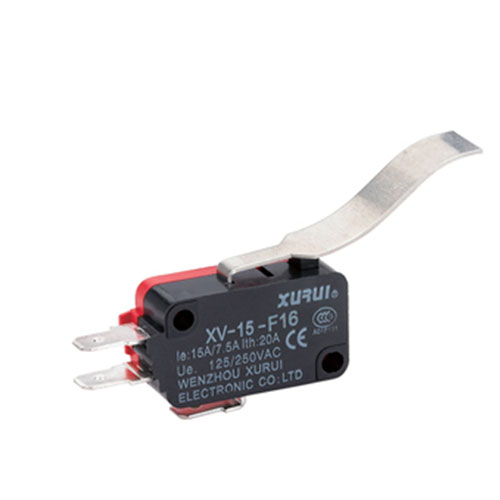

The micro switch is generally based on the unassisted pressing accessory as the basic type, and a small stroke type and a large stroke type are derived. Different auxiliary pressing accessories can be added according to the needs. Plate roller type, lever roller type, short boom type, long boom type and other forms.
In terms of size, there are small, ultra-small, ultra-small, etc. In terms of function, there are waterproof types. The most common application is mouse buttons.
(1)Small micro switch: The general size is 27.8 in length, 10.3 in height and 15.9 in height, and the parameters have different changes such as high capacity and low load. There are different performances of high precision and high life.
(2)The general size of the ultra-small micro switch is 19.8 in length, 6.4 in width, 10.2 in height, and has different functions of high precision and long life.
(3)The general size of the super small micro switch is 12.8 in length, 5.8 in width and 6.5 in height, and this type has an extra-thin design.
