In electronic equipment and electrical systems, micro switches play a key role. Their performance affects the operation of the equipment, so it is extremely necessary and practical to master the method of testing them with a multimeter.
1.Introduction

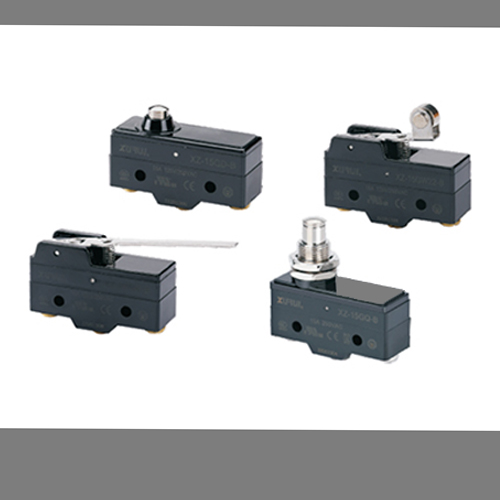

A micro switch is a crucial component in many electrical and electronic systems. Testing it with a multimeter helps ensure its proper functionality and can diagnose potential issues. Here's a detailed guide on how to conduct this test.
2.Tools Required
Multimeter: An essential tool for electrical testing. It should be set to the appropriate mode (usually resistance or continuity mode) for testing the micro switch.
Micro Switch: The device to be tested. Make sure it is easily accessible and disconnected from the circuit it is normally part of, if applicable.
3.Preparations
Safety Precautions
●Ensure the power to the circuit where the micro switch is located (if it was previously connected) is turned off. This prevents any electrical shock or damage to the multimeter.
●Wear appropriate safety gear such as insulated gloves if necessary.
Multimeter Setup
●Turn on the multimeter and select the resistance or continuity testing mode. In the resistance mode, the multimeter measures the resistance between two points. In continuity mode, it checks if there is a ●continuous electrical path. For testing a micro switch, either mode can be used, but the interpretation of results may vary slightly.
4.Testing Procedure
Visual Inspection
Examine the Micro Switch Body: Check for any physical damage such as cracks, broken parts, or loose connections. A damaged switch body may affect the internal mechanism and its performance.
Inspect the Lever or Button: If the micro switch has a lever or button, make sure it moves freely without any obstructions. A stuck lever or button can prevent the switch from operating correctly.
Testing the Contacts
Connect the Multimeter Probes: Place one probe on the common terminal (usually labeled as "C") of the micro switch. Place the other probe on one of the other terminals, either the normally open (NO) or the normally closed (NC) terminal.
Initial State Measurement:
♦If testing the normally open terminal, the multimeter should show a high resistance value (ideally, an open circuit or infinite resistance) when the micro switch is in its resting state. This indicates that the contacts are not touching and the circuit is open.
♦If testing the normally closed terminal, the multimeter should show a low resistance value (close to zero or a very small resistance) in the resting state, meaning the contacts are closed and the circuit is conducting.
Actuating the Switch: Press the lever or button of the micro switch to change its state.
For the normally open terminal, when actuated, the multimeter should now show a low resistance value, indicating that the contacts have closed and the circuit is now conducting.
For the normally closed terminal, when actuated, the multimeter should show a high resistance value, as the contacts have opened and the circuit is broken.
Repeatability Test
♦Actuate the micro switch multiple times (at least 5 - 10 times) and check the resistance values each time. The results should be consistent. If there are significant variations in the resistance values or if the switch fails to change its state as expected, it may indicate a faulty switch.
5.Interpretation of Results
Normal Operation
a.If the micro switch shows the expected resistance values in both the resting and actuated states, and the results are consistent during the repeatability test, it is likely in good working condition.
Faulty Switch
b.If the resistance values do not change as expected when the switch is actuated, or if there is a constantly high or low resistance value regardless of the switch state, it indicates a problem with the switch. This could be due to damaged contacts, a broken internal mechanism, or a faulty connection.
6.Conclusion
Testing a micro switch with a multimeter is a relatively simple yet important process. By following these steps, you can quickly assess the functionality of a micro switch and determine if it needs to be repaired or replaced. Regular testing of micro switches in electrical and electronic systems can help prevent potential failures and ensure the smooth operation of the overall system.
