Definition and use of miniature limit switches

In the intricate world of automation and precise control, miniature limit switches serve as the reliable, unsung heroes. These compact devices provide the essential physical feedback that machines need to operate safely, accurately, and efficiently.

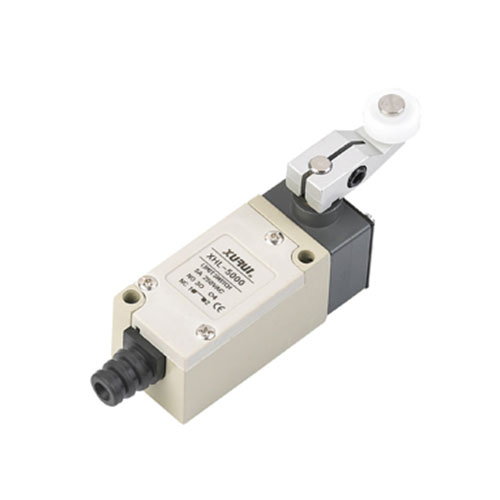

Definition

Miniature limit switches are compact electromechanical devices designed to detect the presence, position, or movement of an object and convert this mechanical action into an electrical signal. Compared with standard limit switches, they feature a smaller size, high sensitivity, and reliable performance, making them ideal for applications where space is limited and precise control is required. Miniature limit switches are commonly used for position detection, safety protection, and motion control in automated systems.

Key Uses & Applications

Valued for their reliability, simplicity, and cost-effectiveness, miniature limit switches are pivotal across numerous industries:

1. Position Detection & Travel Limitation:

   • Industrial Automation: Used in CNC machines, machining centers, and robotic arms to define home positions and travel limits, preventing mechanical overtravel and collisions.

   • 3D Printers / CNC Routers: Facilitates precise homing of the X, Y, and Z axes, ensuring print or cut accuracy from a known starting point.

2. Presence Sensing & Counting:

   • Assembly Lines: Detects if a component or product is in place to trigger the next process (e.g., labeling, welding, packaging).

   • Automatic Doors & Elevators: Verifies door closure for safe operation.

   • Counting Mechanisms: Registers objects passing a point for inventory or process control.

3. Safety Interlocking & Protection:

   • Safety Guards / Doors: Installed on equipment access panels; opening the guard interrupts the circuit, ensuring operator safety during maintenance.

   • Status Monitoring: Confirms the position of valves, the closure of hopper lids, or other critical machine states.

4. Consumer & Precision Equipment:

   • Home Appliances: Door switches in microwaves and washing machines; water tank detection in coffee makers.

   • Office Equipment: Paper tray position sensing in printers/copiers; paper jam detection.

   • Medical Devices: Positioning of moving parts in diagnostic equipment (e.g., CT scanners); safety switches in portable medical devices.

5. Specialized Environments:
   With sealed housings, they can be used in applications requiring dust and water resistance (specific IP ratings) and even in certain explosion-proof environments (with appropriate certifications).

The Working Principle of Limit Switches

The working principle of a miniature limit switch is based on mechanical actuation. When an external object comes into contact with the actuator (such as a lever, plunger, or roller), the internal mechanism is triggered, causing the electrical contacts inside the switch to change state (open or close). This change sends an electrical signal to the control system, which then initiates or stops a specific action. Once the external force is removed, the switch returns to its original state, ready for the next operation.

Conclusion

Miniature limit switches remain a fundamental and indispensable component in automation. While non-contact sensors (like proximity or photoelectric) continue to advance, miniature limit switches maintain a vital role due to their direct physical confirmation, signal stability, immunity to environmental interference (color, material, dust), low cost, and simplicity (often requiring no external power). They are a trusted foundation for achieving precise control, ensuring safety, and building robust systems.

FAQ

1. What is the main difference between a miniature limit switch and a proximity sensor?

• Principle: Limit switches are contact sensors (require physical touch); proximity sensors are non-contact (using electromagnetic fields or light).

• Application: Limit switches are ideal for low-speed applications with physical cams and for safety interlocks. Proximity sensors suit high-speed, wear-free, or delicate object detection.

• Environment: Limit switches are generally more robust against dust, chips, and oils that might interfere with some proximity sensors.

2. How do I select the right miniature limit switch?
Consider these key parameters:

• Space & Mounting: Choose a size, shape, and mounting style (side-mount, top-mount) that fits.

• Actuator Type: Select based on how the target will contact the switch (lever, roller, plunger).

• Electrical Ratings: Voltage, current (AC/DC), and contact rating must meet or exceed the load requirements.

• Mechanical & Electrical Life: The rated number of mechanical operations and electrical switching cycles under load.

• Environmental Protection: Choose an appropriate IP rating (e.g., IP67) for dust/water resistance if needed.

• Certifications: Industry-specific approvals (UL, CE, etc.) may be required.

3. Why do the contacts in a limit switch weld or fail prematurely?
Primary causes include:

• Electrical Overload: Switching currents higher than the contact rating, causing excessive arcing and contact welding.

• Inrush Current: Controlling inductive/capacitive loads (motors, lamps) with a startup surge current much higher than the steady-state current.

• Mechanical Overload: The actuator is subjected to excessive force or shock, damaging internal mechanisms.

• Environmental Contamination: Exposure to corrosive chemicals leading to contact oxidation and increased resistance.
